M 101 (NGC 5457)

Feb - May 2012

Messier 101 is a spiral galaxy near the handle of the Big Dipper.  Visually it is a challenge in smaller scopes due to its low surface brightness.  It is one of the objects that best illustrates the notion of "aperture envy".  In the 30" Challenger the spiral structure is clearly noted.  It can be seen in smaller scopes, but the quality of the view is dependent on the optics and skill of the operator.  Photographically it was an easy object; however, its location in my north sky put it right where light pollution was the worst.  Thus all of the broadband images suffered from gradients.

The thumbnails below are cropped to show just M101.  Click on the image for the full frame

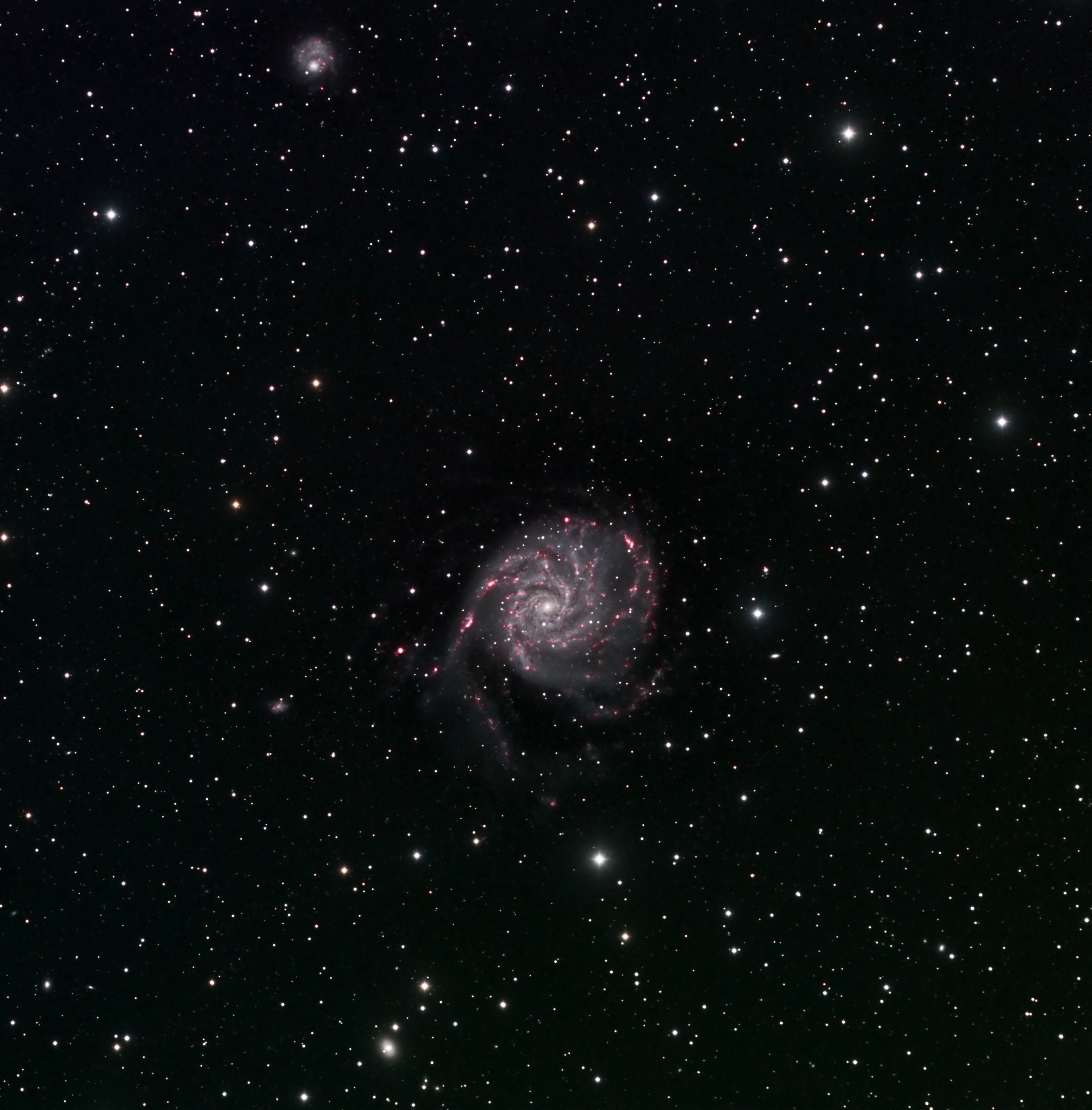

M101 LRGBH
LRGB + Hydrogen
alternative

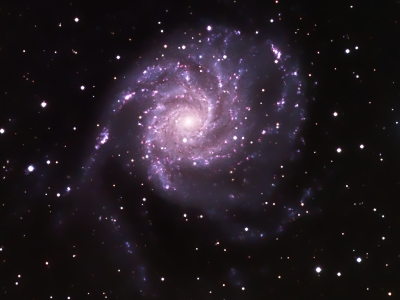

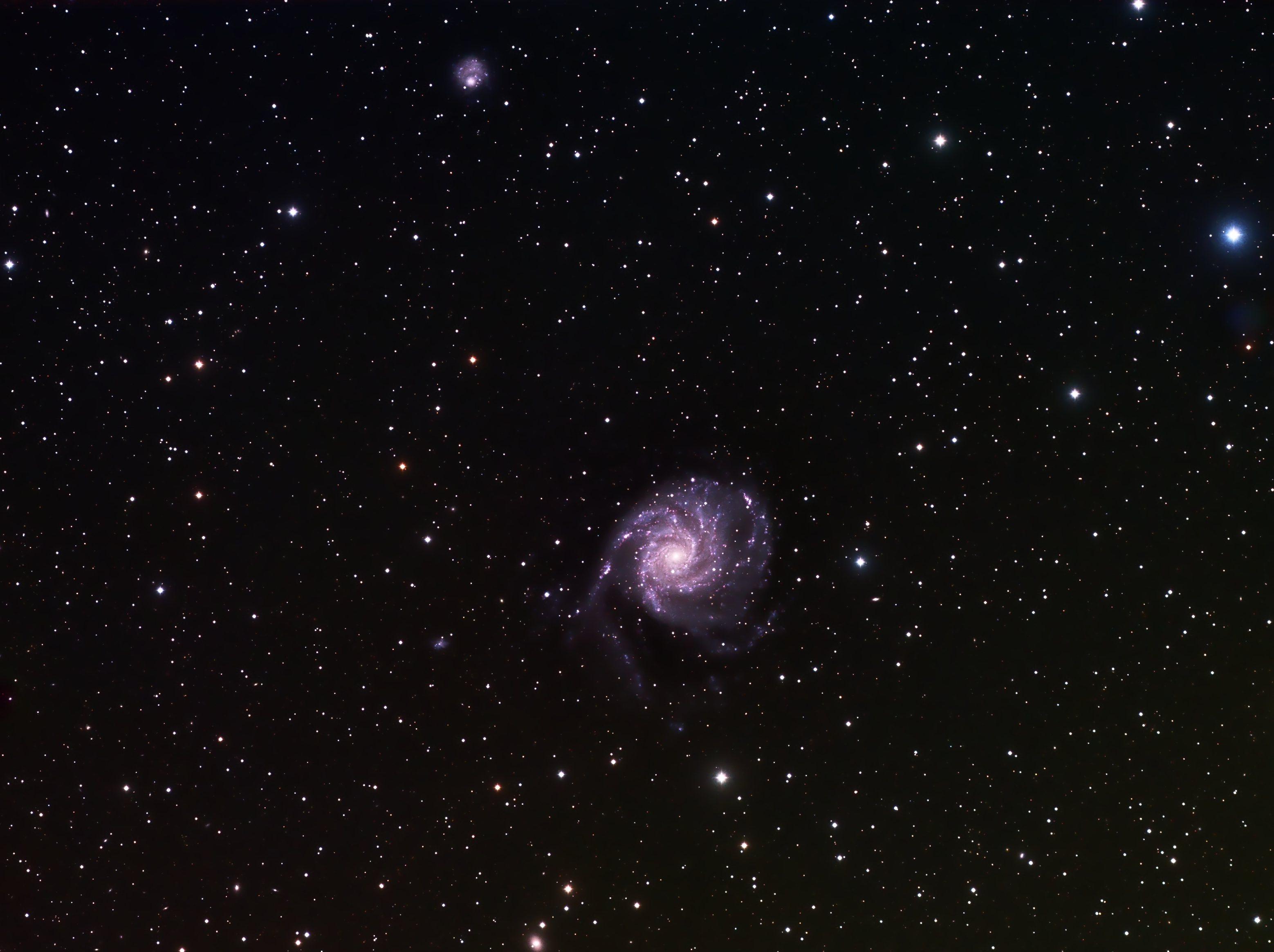

M101 LRGB
LRGB
M101

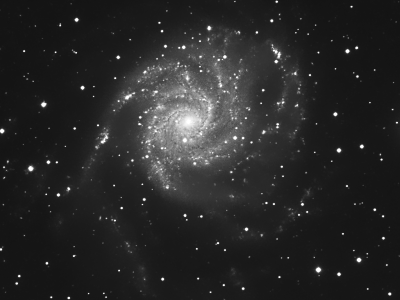

                - Luminance

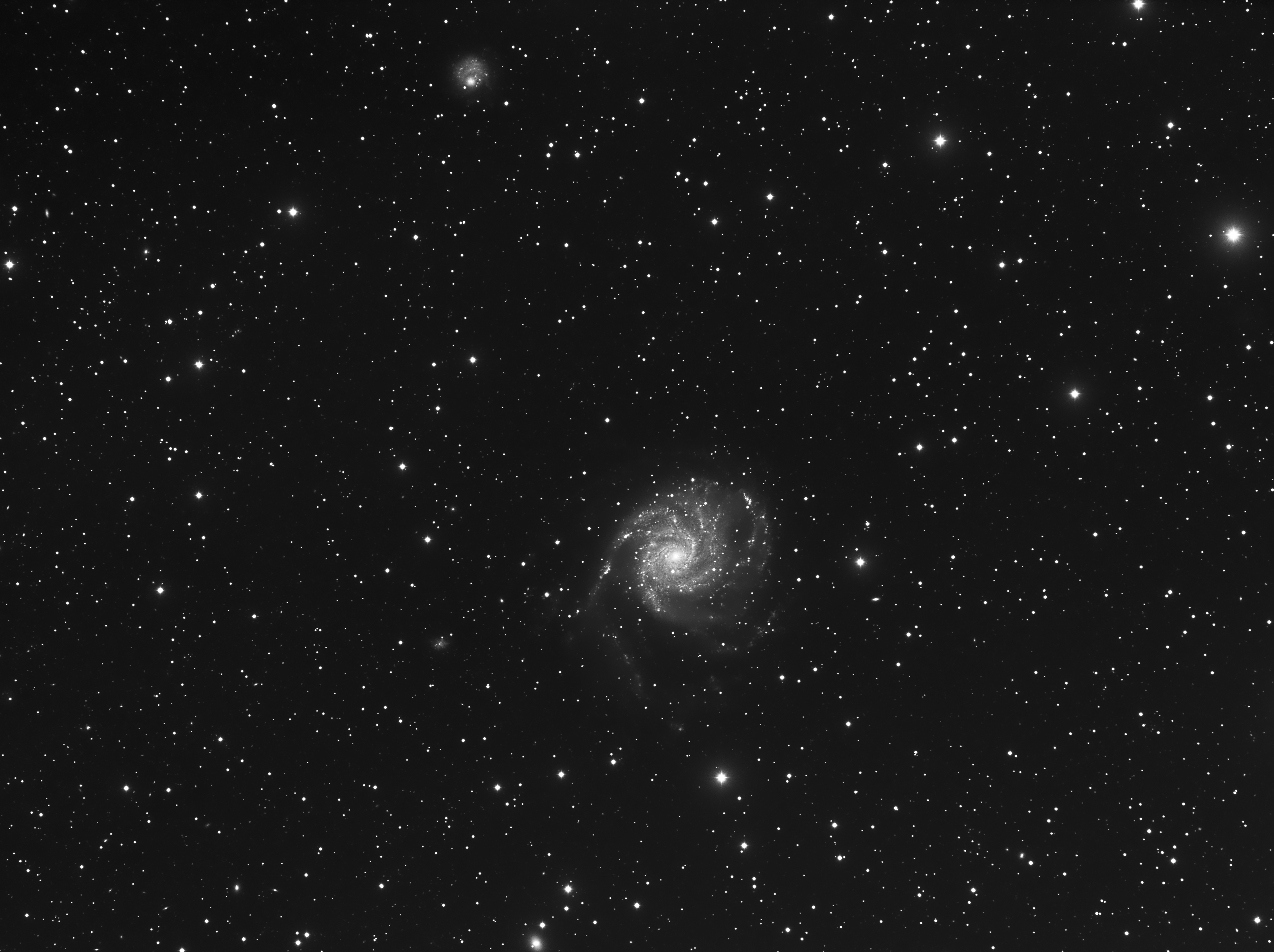

Luminance

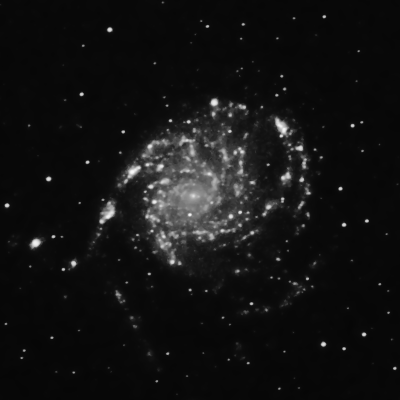

M101 in Hydrogen
                Alpha
M101 in Hydrogen Alpha


Annotated Map

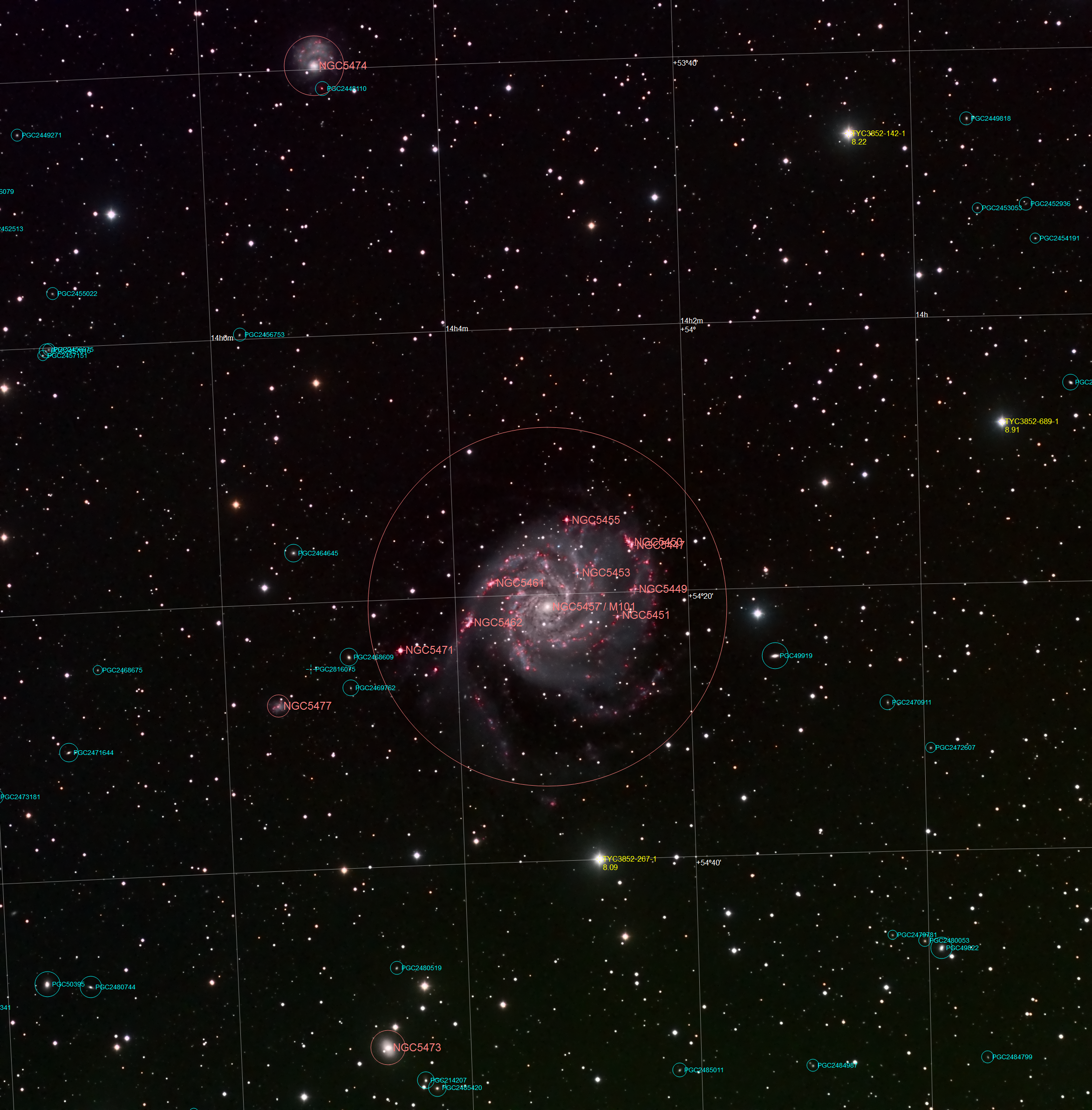

The area around M101 is rich in other small galaxies.  M101 itself has a number of star forming regions in it that are assigned unique NGC numbers.  The H alpha enhanced image shows these very well. Click for a full size image.

Annotated M101 Image



Processing Details

Filter
Exposures
Hydrogen
65x900


Red
30x300
Green
39x300
Blue
33x300


Luminance
52x420

Of course this is only what met the image quality standards.


The images were processed with PixInsight.  The H alpha signal was added to linear red data using the Vicent Peris Method

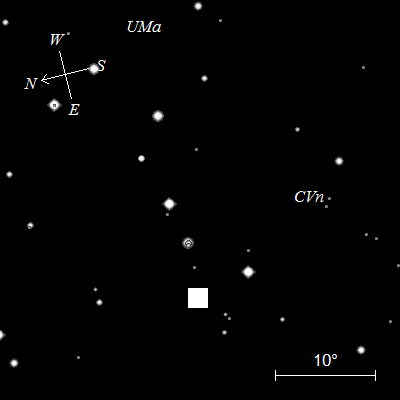

Area Map of M 101


LT area maparea
Area Map
